CHCNAV Lenksysteme –
Technik aus dem Vermessungswesen
CHCNAV kommt nicht aus der Landtechnik. Die Firma baut seit 15 Jahren
Vermessungsgeräte für Baustellen, Bergbau und Katastervermessung –
Umgebungen, in denen Technik bei Staub, Hitze, Kälte und Dauerbetrieb
laufen muss. Genau diese Hardware steckt in den CHCNAV-Lenksystemen.
Bei LEDAB arbeiten wir seit Jahren mit Landwirten und Lohnunternehmern
zusammen. Wir haben CHCNAV nicht wegen schöner Broschüren gewählt,
sondern weil wir gesehen haben, wie Systeme im dritten Jahr noch genauso
laufen wie am ersten Tag – ohne Hotline-Marathon, ohne Ausfälle nach
Gewitter.
NX610 Lenksystem ansehen →
Überlappungskosten Rechner
Beispielrechner auf Basis deiner Eingaben. Ergebnis ist eine konservative Orientierung und hängt unter anderem von Feldformen, Arbeitsbreiten, Section Control, Teilbreiten, Vorgewende und Arbeitsweise ab.
Was CHCNAV anders macht
Lautloser Lenkradmotor
Der bürstenlose CHCNAV Lenkradmotor arbeitet nahezu geräuschlos. Während viele Lenkradmotoren durch hörbare Betriebsgeräusche auffallen, setzt CHCNAV auf eine leise und robuste Antriebstechnologie – ausgelegt für den täglichen Einsatz unter anspruchsvollen Bedingungen.
The NX510 SE is an automatic steering system that allows many tractors and other vehicles to be retrofitted with a compact, modern and comprehensive solution - at a price that every farm can afford. It offers significant productivity gains, works in all visibility conditions and reduces driver fatigue. The combined GNSS+IMU terrain compensation technology ensures steering accuracy of up to 2.5 centimeters and provides superior performance in planting, seeding and crop protection operations. The NX510 SE is an advanced guidance controller that works with multiple correction sources and five satellite constellations: GPS, GLONASS, Galileo, Beidou and QZSS. The integrated 4G modem seamlessly connects to all industry-standard DGPS and RTK corrections to achieve centimeter-accurate guidance. In addition, terrain roll and pitch compensation technology ensures high accuracy - even in challenging environments and terrain. NX 510 SE CHCNAV Automatic guidance system Accuracy: RTK VRS 2.5cm Warranty: 2 years Consisting of:10” CB-A10 display based on an Android tablet Integrated 4G modem in the tablet modern GPS receiver/steering controller PA-3-SE (CHCNAV receiver)RTK accuracy upgrade GPS + Glonass + Galileo + Beidou + QZSS Integrated 4G modem in the receiver Steering hub motor incl. steering wheel Gear adapter for your machine - please specify with every order Steering angle sensor with gyroscope for easy installation Reversing camera Cable set with integrated main switch RAM display holder
The NX510 SE is an automatic steering system that allows many tractors and other vehicles to be retrofitted with a compact, modern and comprehensive solution - at a price that every farm can afford. It offers significant productivity gains, works in all visibility conditions and reduces driver fatigue. The combined GNSS+IMU terrain compensation technology ensures steering accuracy of up to 2.5 centimeters and provides superior performance in planting, seeding and crop protection operations. The NX510 SE is an advanced guidance controller that works with multiple correction sources and five satellite constellations: GPS, GLONASS, Galileo, Beidou and QZSS. The integrated 4G modem seamlessly connects to all industry-standard DGPS and RTK corrections to achieve centimeter-accurate guidance. In addition, terrain roll and pitch compensation technology ensures high accuracy - even in challenging environments and terrain. NX 510 SE CHCNAV Automatic guidance system Accuracy: RTK VRS 2.5cm Warranty: 2 years Consisting of:10” CB-A10 display based on an Android tablet Integrated 4G modem in the tablet modern GPS receiver/steering controller PA-3-SE (CHCNAV receiver)RTK accuracy upgrade GPS + Glonass + Galileo + Beidou + QZSS Integrated 4G modem in the receiver Steering hub motor incl. steering wheel Gear adapter for your machine - please specify with every order Steering angle sensor with gyroscope for easy installation Reversing camera Cable set with integrated main switch RAM display holder
The NX510 SE is an automatic steering system that allows many tractors and other vehicles to be retrofitted with a compact, modern and comprehensive solution - at a price that every farm can afford. It offers significant productivity gains, works in all visibility conditions and reduces driver fatigue. The combined GNSS+IMU terrain compensation technology ensures steering accuracy of up to 2.5 centimeters and provides superior performance in planting, seeding and crop protection operations. The NX510 SE is an advanced guidance controller that works with multiple correction sources and five satellite constellations: GPS, GLONASS, Galileo, Beidou and QZSS. The integrated 4G modem seamlessly connects to all industry-standard DGPS and RTK corrections to achieve centimeter-accurate guidance. In addition, terrain roll and pitch compensation technology ensures high accuracy - even in challenging environments and terrain. NX 510 SE CHCNAV Automatic guidance system Accuracy: RTK VRS 2.5cm Warranty: 2 years Consisting of:10” CB-A10 display based on an Android tablet Integrated 4G modem in the tablet modern GPS receiver/steering controller PA-3-SE (CHCNAV receiver)RTK accuracy upgrade GPS + Glonass + Galileo + Beidou + QZSS Integrated 4G modem in the receiver Steering hub motor incl. steering wheel Gear adapter for your machine - please specify with every order Steering angle sensor with gyroscope for easy installation Reversing camera Cable set with integrated main switch RAM display holder
GA-Sensor: Nicht nur GPS-Position
GPS misst die Position der Antenne. Am Hang steht der Traktor schräg – die Antenne ist 20–30 cm seitlich versetzt zur tatsächlichen Traktorposition. Standard-Systeme driften am Hang ab.
CHCNAV verbaut einen 9-Achsen-GA-Sensor, der Roll- und Nickbewegungen misst. Das System rechnet aus, wo der Traktor tatsächlich steht – nicht nur, wo die Antenne ist. Auch bei 15 % Hangneigung bleibt die Spur bei ±2,5 cm. In Hanglagen Süddeutschlands oder in Mittelgebirgsregionen ist das ein entscheidender Unterschied.
Multi-GNSS statt nur GPS
Amerikanisches GPS allein hat 31 Satelliten. Am Waldrand oder zwischen Gebäuden kann die Satelliten-Geometrie ungünstig werden. CHCNAV empfängt vier Netze parallel: GPS (USA), GLONASS (Russland), Galileo (Europa), BeiDou (China) – insgesamt über 100 Satelliten. Wenn ein Netz schwächelt, laufen die anderen weiter. Die Spur bleibt stabil, auch bei Abschattung.
Die drei Systeme: Wann brauchen Sie was?
NX510 SE – Für 95 % der Betriebe ausreichend
10-Zoll-Display, Multi-GNSS, IMU, ±2,5 cm RTK-Genauigkeit. Das System eliminiert Überlappungen, ermöglicht präzise Bearbeitung von Reihenkulturen und arbeitet bei Tag und Nacht zuverlässig.
Für wen: Alle Betriebe ab 10 Hektar, Standardarbeiten wie Düngen, Säen, Spritzen, Pflügen.
NX610 – Schnellerer Prozessor, mehr Leistung
Das NX610 reagiert schneller bei komplexen Feldstrukturen und bietet ISOBUS-Möglichkeiten. Die Spurgenauigkeit ist identisch mit dem NX510 SE.
Für wen: Lohnunternehmer oder Betriebe mit komplexeren Anforderungen.
LACOS LC TWO Max 120Das Set beinhaltet: LACOS LC TWO 12° Display (100003)LACOS Terminal Halter-Set LC TWO (10300088)LACOS CAB Displaykabel mit Kameraanschluss (10200097) CHCNAV Lenksystem NX510( 8006020050) LACOS MOD Autosteering (10500009) LACOS MOD NG (10500020) LACOS MOD ISOBUS SC Medium (10500007) *verfügbar ab ca. April 2026
NX612 – Großes Display für aufwendige Aufgaben
Das NX612 enthält dieselbe Hardware wie das NX610, kombiniert mit einem 12-Zoll-Terminal – für bessere Übersicht bei ISOBUS-Anwendungen.
Wann NX612: Wenn Sie regelmäßige ISOBUS-Arbeiten durchführen oder das größere Display bevorzugen.
Die Lenkgenauigkeit ist bei allen drei Systemen identisch. Wer ausschließlich Überlappungen eliminieren möchte, ist mit dem NX510 SE vollständig versorgt.
The NX510 SE - Steer Ready is an automatic steering system that allows many pre-equipped tractors and other vehicles to be retrofitted with a compact, modern and comprehensive solution at a price that any farm can afford. It offers significant productivity gains, works in all visibility conditions and reduces driver fatigue. The combined GNSS+IMU terrain compensation technology ensures steering accuracy of up to 2.5 centimeters and provides superior performance in planting, seeding and crop protection operations. The NX510 SE is an advanced guidance controller that works with multiple correction sources and five satellite constellations: GPS, GLONASS, Galileo, Beidou and QZSS. The integrated 4G modem seamlessly connects to all industry-standard DGPS and RTK corrections to achieve centimeter-accurate guidance. In addition, terrain roll and pitch compensation technology ensures high accuracy - even in challenging environments and terrain. NX 510 SE CHCNAV Automatic guidance system Accuracy: RTK VRS 2.5cm Warranty: 2 years Consisting of:10” CB-A10 display based on an Android tablet Integrated 4G modem in the tablet modern GPS receiver/steering controller PA-3-SE (CHCNAV receiver) RTK accuracy upgrade GPS + Glonass + Galileo + Beidou + QZSS Integrated 4G modem in the receiverCAN-BUS control box Rear view camera Cable set with integrated main switch RAM display holder
Drei Nachrüst-Wege – welcher passt?
Steer-Ready
Kompatibel u. a. mit CLAAS ab 2012, Fendt ab 2010, John Deere ab 2011. Die Einbauzeit reduziert sich häufig auf 3–4 Stunden.

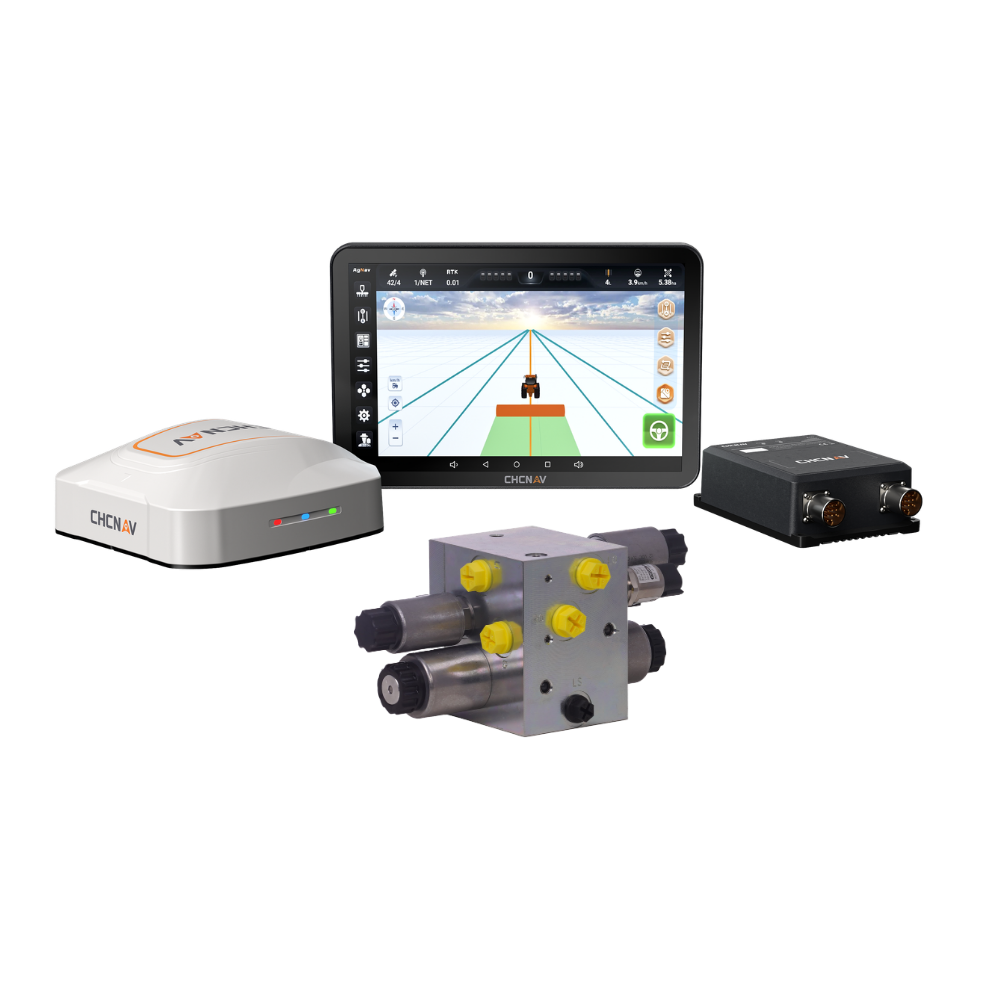

Hydraulisch
Ein HYDAC-Ventil wird in die Lenkhydraulik eingebaut. Direktes, ruhiges Lenkverhalten. Sinnvoll, wenn kein Steer-Ready vorhanden ist, die Hydraulik aber gut zugänglich ist.
Lenkradmotor
Bürstenloser Motor am Lenkrad. Funktioniert bei praktisch jedem Traktor ab Baujahr 1995 – auch bei Favorit-, Eicher- oder Spezialhersteller-Modellen. Mit passendem Verzahnungsadapter auf nahezu jede Lenkrad-Geometrie adaptierbar.
Unsicher, welche Variante passt? Wir prüfen kostenlos anhand Ihrer Traktormarke und Ihres Baujahrs.
Maschinenvorbereitung: Ein Display für mehrere Maschinen
Display und GPS-Empfänger können zwischen Maschinen gewechselt werden. Sie kaufen einmal das Komplettsystem und rüsten weitere Maschinen mit einer Maschinenvorbereitung aus. Diese Lösung funktioniert ausschließlich in Kombination mit einem Lenkradmotor.
CHCNAV oder LACOS?
Beide Systeme bieten ±2,5 cm RTK-Genauigkeit, Multi-GNSS und IMU. Der Unterschied liegt vor allem in der ISOBUS-Integration.
CHCNAV wählen, wenn:
- Sie Überlappungen eliminieren wollen
- Sie keine aufwendige ISOBUS-Integration benötigen
LACOS wählen, wenn:
- Sie ISOBUS-Maschinen von Amazone, Horsch oder Lemken einsetzen
- Sie Section Control brauchen (automatische Teilbreitenschaltung)
- Sie ein Terminal für Lenkung und Maschinensteuerung in einem wollen
- Sie auf eine Softwarelösung aus Deutschland setzen wollen
LEDAB-Händlernetzwerk: Einbau und Einweisung vor Ort
Über unser geschultes deutschlandweites Händlernetzwerk geben Sie Ihren Schlepper bei einem Partner ab und fahren je nach Auslastung nach 5–8 Werkstattstunden mit eingebautem Lenksystem wieder los – inklusive professioneller Einweisung. Wenn nach drei Wochen Fragen auftauchen: direkter Kontakt zu den Leuten, die eingebaut haben. Kein Callcenter, keine Ticketnummer.
Welches System passt zu Ihrem Traktor? Wir prüfen kostenlos die Kompatibilität und rechnen die Wirtschaftlichkeit durch – ehrlich und ohne Verkaufsrhetorik.

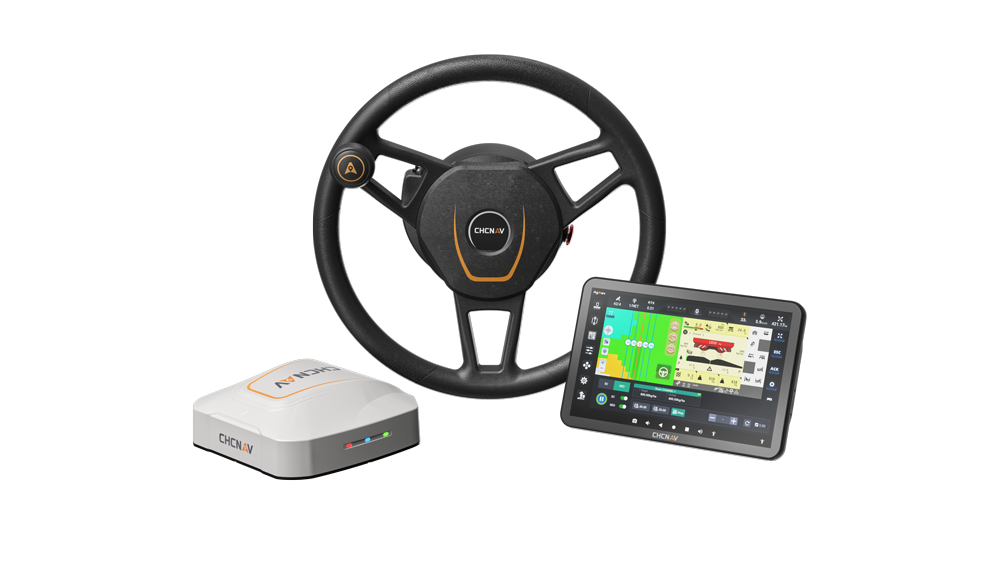

CHCNAV - NX510 SE Steering System
